Wireless products (ZigBee/IEEE802.15.4)

Tokyo Cosmos Electric (TOCOS) offers ZigBee / IEEE802.15.4 modules, Evaluation and Development Kit, which supports evaluation and development of the modules, dedicated JTAG Debugger, antennas and other relevant products.

ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine allows you to easily add a wireless function by incorporating it in your product.

ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine

ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine is a wireless microcomputer module compliant with ZigBee/IEEE802.15.4, a global standard.

The product is designed to meet the instantaneous start-up, super-low power consumption, and long signal range required for ZigBee/IEEE802.15.4 modules at a high level.

By using ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine as a part, you can add a wireless function to your device in a short time.

As the ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine has various built-in I/O such as 32-bit RISC processor, analog I/O, digital I/O, comparator, pulse counter in the small package, it allows for direct control of sensors, display, LED, switches and so on. The substantial capacity of RAM and flash memory also allows for stress-free installation of applications using ZigBee PRO or other communications protocols. All-in package can minimize the peripheral circuits and help reduce the total cost and development time for your product.

As this product has already obtained the certification according to the Radio Act of Japan, the ARIB STD-T66 Factory Design Certificate (Technical Regulations Conformity Certification), which is required for the use in Japan, you can start using the product without spending time and money on obtaining the certification. This is a RoHS-compliant and environmentally friendly product.

Please check by far the lowest power consumption and outstanding communications performance of the ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine.

ZigBee/IEEE802.15.4 Module

Product Name: TOCOS Wireless Engine
Product Number: TWE-001

"Long Battery Life"
Super low power consumption & long signal range

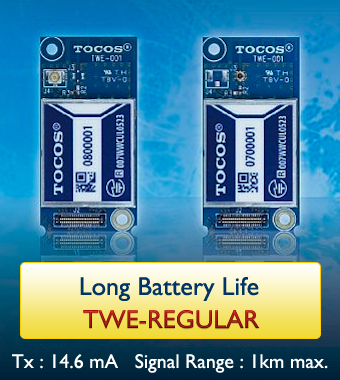

With outstandingly low power consumption and excellent communications performance, it is best suited for long time operation on batteries. It is also perfectly compatible with energy harvesting technologies.
>> Details

Transmission Output	+2.7 dBm
Receiving Sensitivity	-95 dBm
Tx Current	14.5 mA
Rx Current	17.2 mA
Standby Current	1.3 μA (deep sleep)
Outline Dimensions	40 mm x 20 mm x 3.5 mm
Weight	4.0 g
Signal Range (line of sight)	Built-in antennas 400 m External antennas (2 dBi) 1,000 m
Operating Voltage	2.0 - 3.6 V
Operating Temperature	-40 - 85 C
Certification	ARIB STD-T66 (Technical Regulations Conformity Certification) AS/NZS 4268

VDD = 3.0 V @ + 25 C

ZigBee/IEEE802.15.4 Module

Product Name: TOCOS Wireless Engine
Product Number: TWE-001 STRONG

"Reliable Signaling"
Low power consumption & super long signal range

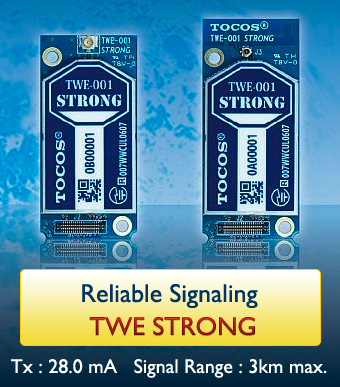

A high output type with outstandingly small power consumption. It allows for long signal range when driven on batteries. The built-in antennas also boast high performance. Best suited for long signal range and an environment with many disturbances.
>> Details

Transmission Output	+9.08 dBm
Receiving Sensitivity	-100 dBm
Tx Current	28.0 mA
Rx Current	23.5 mA
Standby Current	1.3 μA (deep sleep)
Outline Dimensions	Built-in antennas 45.5 x 20 x 3.5 (mm) External antennas 42 x 20 x 3.5 (mm)
Weight	Built-in antennas 4.5 g External antennas 4.6 g
Signal Range (line of sight)	Built-in antennas 1,700 m External antennas (2 dBi) 3,110 m
Operating Voltage	2.0 - 3.6 V
Operating Temperature	-40 - 85 C
Certification	ARIB STD-T66 (Technical Regulations Conformity Certification) AS/NZS 4268

VDD = 3.0 V @ + 25C

Evaluation and Development Kit

ZigBee/IEEE802.15.4 Evaluation and Development Kit

Product Name:

Evaluation and Development Kit

Product Number:

TWE-EK-002

ZigBee/IEEE802.15.4 Evaluation and Development Kit facilitates the evaluation and development of TOCOS Wireless Engine. Eliminating the need to spend extra time on preparing for evaluation and development, it allows you to just start it right away. You can also prototype on the ZigBee/IEEE802.15.4 Evaluation and Development Kit and start developing software. It accompanies the technical support service good for one year from the date of purchase.
>> Details

Software Development Kit (SDK)

Software Development Kit (SDK) for ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine is provided for free. There is no limitation in duration of use or available functions, and no additional costs are required. It helps minimize the initial investment to start development.
>> Details

Packet Sniffer (Analyzer)

Packet Sniffer (Analyzer), which can be used in ZigBee/IEEE802.15.4 Evaluation and Development Kit (TWE-EK-002), is provided for free. It is a convenient tool that visualizes the contents of communications. It will be especially helpful in analyzing communications at a development phase. Take advantage of the product and make your development work more efficient to expedite the time to the market.
>> Details

TWE-ZERO

Ready-made Software
TWE-ZERO Series

TWE-ZERO eliminates the need to develop software.
TWE-ZERO is ready-made software that selects typical usage patterns in several combinations and optimizes the communications control for each.
All you need to do is to purchase the ZERO license and download the product in a wireless engine. Then, you can start using it right away.
>> Details

Sensor Network Evaluation Kit

Product Name:

Sensor Network Evaluation Starter Kit

Product Number:

TWE-WSN-002

Sensor Network Evaluation Kit is a package with software installed to help you start evaluating sensor networks without being bothered by the preparation. It allows you to verify the feasibility of the sensor network system using the wireless engine under development in a short period of time.

The software for a wireless engine tuned to consume only super-low power is already installed. Additional End devices are always available for sale, so it takes no time to start evaluating with an increased number of clients.

A client can use Energy Harvesting power generating element as a power source.

Sensor Network Evaluation Starter Kit is a package for sensor network evaluation that allows you to monitor sensor information on a graphical display of a PC just by connecting the access point to the PC through USB and setting clients.
>> Details

Board for Converting to 2.54 mm Pitch

Product Name:

TWE-CARRIER 001

Product Number:

TWE-EK-254CV

This is a conversion board for TWE-001/TWE-001 STRONG. It converts the connector to 40 pins (20 pins x 2) at a 2.54 mm pitch.
>> Details

Implementation Example

Energy Harvesting Wireless Sensor Tag

Product Name:

Energy Harvesting Wireless Sensor Tag (with Kyosemi' s Sphelar mounted)

Product Number:

TWE-EK-EH-KYO

Energy Harvesting Wireless Sensor Tag is provided as an option for ZigBee/IEEE802.15.4 Evaluation and Development Kit. With the software optimized for energy harvesting installed, it starts wireless transmission of temperature and humidity information by setting the harvester (solar cell) at a place where light shines on.
>> Details

JTAG Debugger (JTAG ICE)

Product Name:

JTAG Debugger

Product Number:

TWE-JD-001

JTAG Debugger (JTAG ICE) is a convenient development tool that allows for efficient software development on ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine. It will be an ideal partner in software (firmware) development.
>> Details

Set of Antennas

Product Name:

Set of Antennas

Product Number:

TWE-EK-AN-001

Another feature of ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine is that there are a wide range of antennas available that are certified according to the Radio Act of Japan and can be connected to the product.

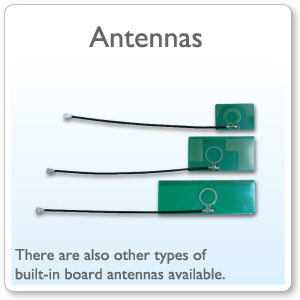

TWE-EK-AN-001 is a package for evaluating thin-type board antennas which is useful when incorporating antennas in a case. There are 3 different types available and each has different size and gain. The bigger, the better gain you get. Attach them inside an ABS resin case before use.

We are also offering a variety of antennas that can be connected to ZigBee/IEEE802.15.4 Module TOCOS Wireless Engine and have obtained Technical Regulations Conformity Certification; from a waterproof type that can be used outdoors to directional one to the one that can be attached on a metal, all of which are certified according to the Radio Act of Japan.
>> Details

Materials

About Regulation of the Radio Act of Japan
(Technical Regulations Conformity Certification)

To use ZigBee/IEEE802.15.4 Module (wireless device) in Japan, a certification (Technical Regulations Conformity Certification) according to the Radio Act of Japan is required.

Tokyo Cosmos Electric provides TOCOS Wireless Engine as a module already certified with Technical Regulations Conformity Certification. We inspect 100% products for the radio wave performance at the time of shipping and guarantee as a manufacturer that all the products are compliant with the law.

Among the wireless modules made overseas or those requiring soldering for, e.g. surface mount, there are some cases where Technical Regulations Conformity Certification (certificate of technical standard or factory design certificate) for Japan has not been obtained (or cannot be obtained as a wireless module). There are also wireless modules with high output to such a degree that is not permitted in Japan. Please note that using those wireless modules in Japan can be considered illegal even if it is just for an evaluation purpose unless it is used in a shield room or the like. In addition, some wireless modules may get out of the range of certification if the firmware is rewritten. All of our products are compliant with Technical Regulations Conformity Certification, so please rest assured that you can use them without violating any compliance. Also see Considerations about the Radio Act of Japan.
*For the status of obtaining certification in other countries, please contact us.
